Schematic diagram
Polaris•Schematic assembly

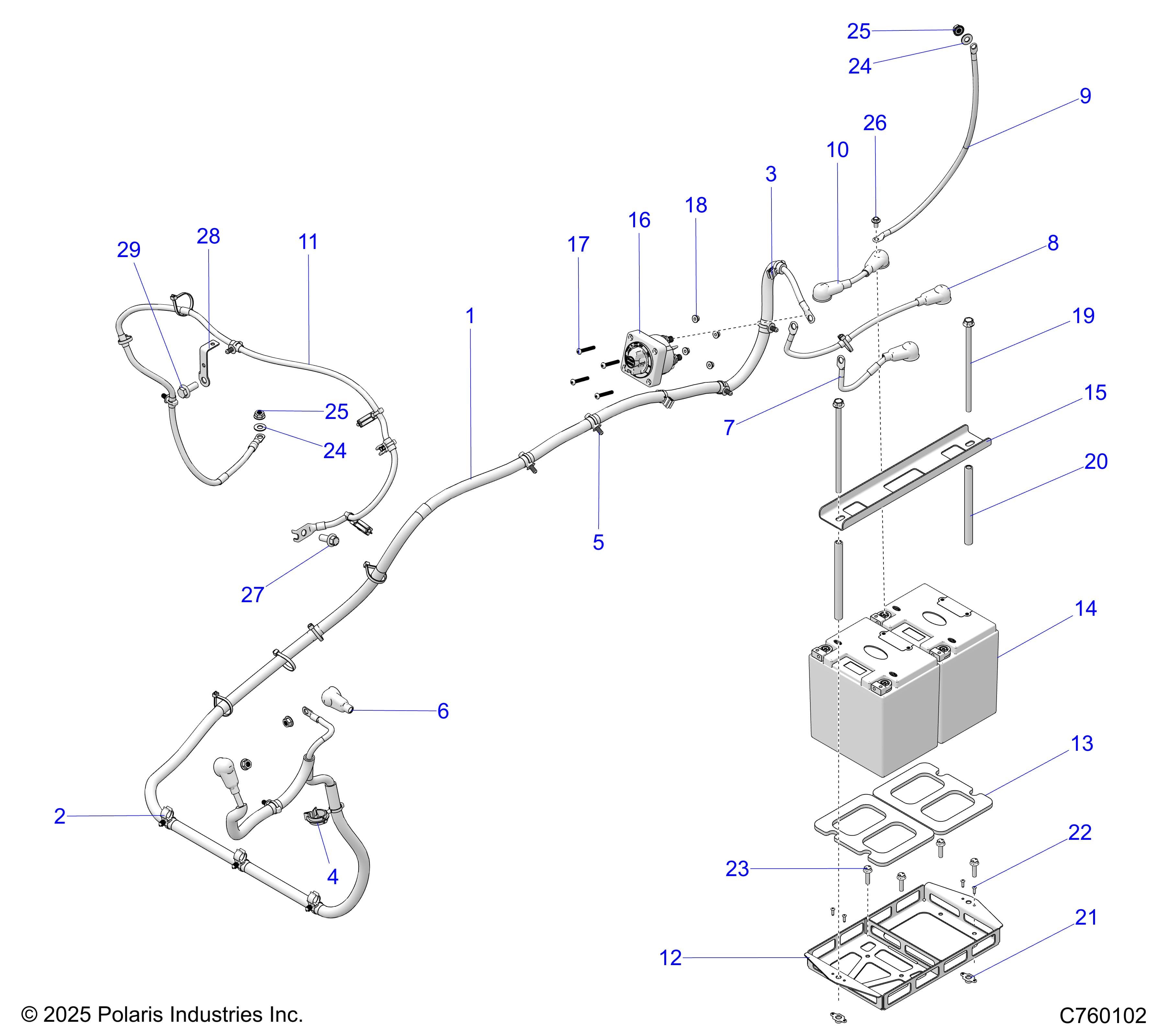

ELECTRICAL, BATTERY AND CABLES - Z26RRE2KAL (C760102)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R RACE Assembly ID: 255759
Vehicle Compatibility
- 2026 Polaris RZR PRO R RACE
Checkout Note
Please note that 19 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4083465 | CBL-PWR,ALT,START,RACE [INCLUDES 2-6] | 1 | Price TBD | Out of stock | |
| 2 | 7082750 | CLIP-XMAS,OMEGA, CABLE/11-15MM | 3 | $3.99 | Out of stock | |
| 3 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 2 | Price TBD | Out of stock | |
| 4 | 7082408 | CLIP-OMEGA,CABLE/19-24.5MM DIA | 1 | $14.99 | In stock | |
| 5 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 5 | Price TBD | Out of stock | |
| 6 | 4011723 | BOOT, BATTERY, RED | 2 | $9.99 | In stock | |
| 7 | 4082872 | CBL-BATT,POS1,RACE | 1 | Price TBD | Out of stock | |
| 8 | 4082873 | CBL-BATT,POS2,RACE | 1 | Price TBD | Out of stock | |
| 9 | 4082874 | CBL-BATT,GND1,RACE | 1 | Price TBD | Out of stock | |
| 10 | 4082875 | CBL-BATT,GND2,RACE | 1 | Price TBD | Out of stock | |
| 11 | 4083458 | CBL-BATT,GND,START | 1 | Price TBD | Out of stock | |
| 12 | 1029983-458 | WELD-BATTERY TRAY BTM,BLK | 1 | Price TBD | Out of stock | |
| 13 | 5466213 | SPACER-BATTERY TRAY,F | 2 | Price TBD | Out of stock | |
| 14 | 4083259 | BATTERY-12 VOLT,LITH | 2 | Price TBD | Out of stock | |
| 15 | 5274869-458 | BRKT-BATTERY TRAY TOP,MBLK | 1 | Price TBD | Out of stock | |
| 16 | 4082212 | SWITCH-BATTERY SELECTOR | 1 | Price TBD | Out of stock | |
| 17 | 7527922 | SCR-HXBH-M5X0.5X35 8.8 ZPB DRI | 4 | $11.99 | In stock | |
| 18 | 7547427 | NUT-M5X0.8 8.8 HX/FL NYLOC | 4 | Price TBD | Out of stock | |
| 19 | 7521080 | SCR-HXFL-M8X1.25X170 10.9 ZY3 | 2 | $6.99 | In stock | |
| 20 | 5145835 | BATTERY BOLT SPACER | 4 | Price TBD | Out of stock | |
| 21 | 7548160 | NUT-ANCHOR-M8X1.25 SPC | 2 | Price TBD | Out of stock | |
| 22 | 7662394 | RIVET-1/8X0.4 (.188-.250) AL | 4 | $1.49 | In stock | |
| 23 | 7521331-25 | SCR-HXFL-M6X1.0X25 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 24 | 7556716 | WSH-.344,.750,.050,FLT,SS | 3 | $1.99 | In stock | |
| 25 | 7548084 | NUT-HXFL-M8X1.25 8 ZPC SPC | 3 | Price TBD | Out of stock | |
| 26 | 7517653 | Screw, Flange | 1 | $6.99 | In stock | |
| 27 | 7518908 | SCR-HXFL-M10X1.5X25 8.8 ZPC | 1 | $1.99 | In stock | |
| 28 | 5276269-329 | BRKT-MOUNT,CONNECTOR,ECOAT | 1 | $14.99 | In stock | |
| 29 | 7519349 | SCR-HXFL-M10X1.5X25,DIN6921ZB | 1 | $6.99 | In stock |
