Schematic diagram
Polaris•Schematic assembly

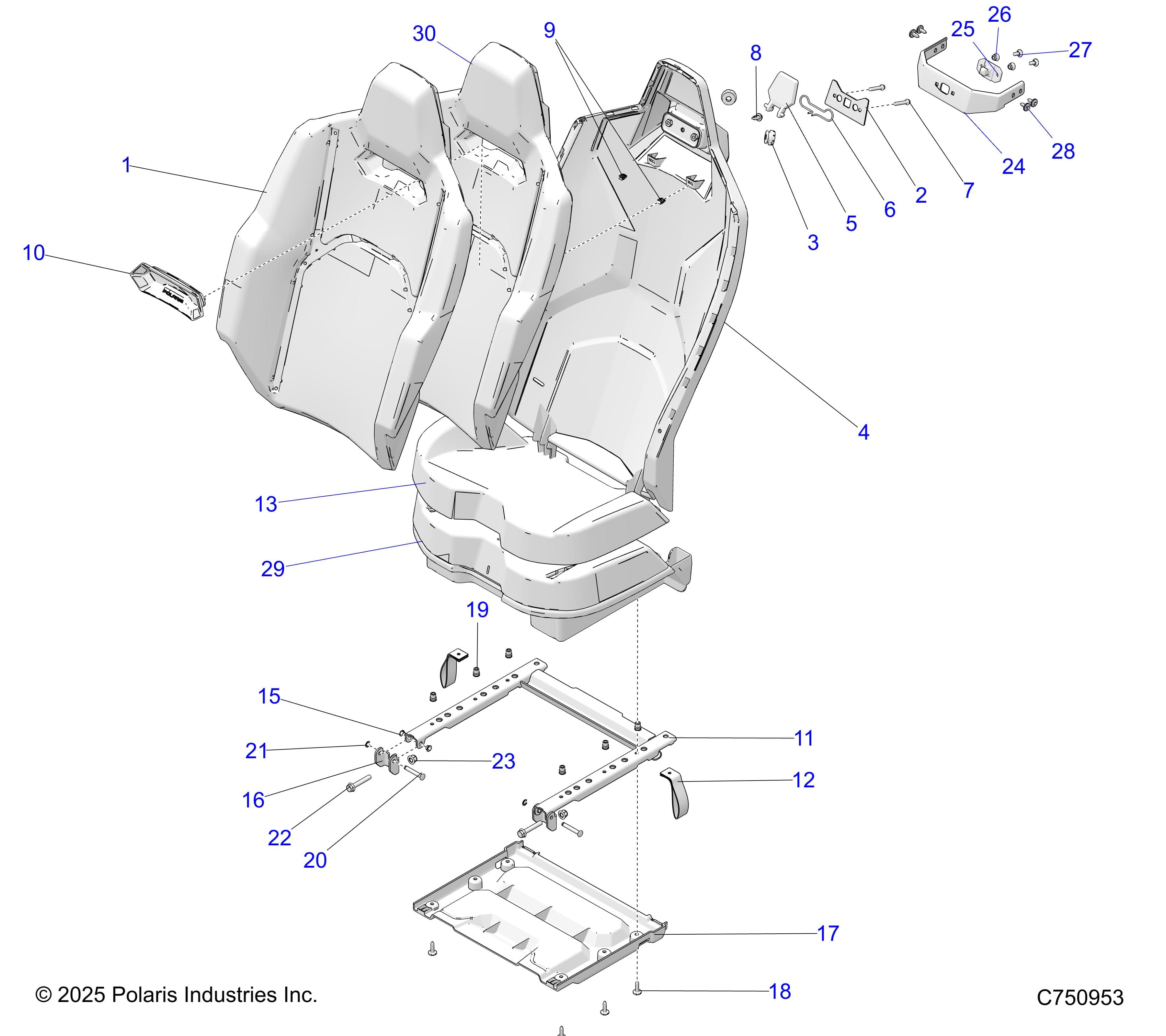

BODY, SEAT ASM, & MOUNTING, REAR - Z26R4K2KAC/BC/AR/BR/AJ/BJ/AV/BV (C750953)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R4 ULTIMATE Assembly ID: 256314
Vehicle Compatibility
- 2026 Polaris RZR PRO R4 ULTIMATE
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2693695 | ASM-COVER-SEAT,BACK,INDY RED,R [AR][BR] | 1 | $164.99 | In stock | |
| 1 | 2693709 | ASM-COVER-SEAT,BACK,TTM,RED ST [AC][BC] | 1 | $164.99 | In stock | |
| 1 | 2693194 | ASM-COVER-SEAT,BACK,TITANIUM [AJ][BJ][AV][BV] | 1 | $164.99 | In stock | |
| 2 | 5273996-329 | COVER-LATCH,SEAT,MP,ECOAT | 1 | $54.99 | In stock | |
| 3 | 5413428 | GROMMET-LATCH | 2 | Price TBD | Out of stock | |
| 4 | 5465065 | SEAT-SHELL,BACK | 1 | $134.99 | In stock | |
| 5 | 5465066 | LATCH-HANDLE | 1 | $6.99 | In stock | |
| 6 | 7081466 | SPRING, LATCH, SEAT | 1 | $39.99 | In stock | |
| 7 | 7518578 | SCR-HXFL-M6X1.0X35 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 8 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | Price TBD | Out of stock | |
| 9 | 5456313 | CLIP-TRIM, PLASTIC, WHITE | 4 | Price TBD | Out of stock | |
| 10 | 5465755-070 | BEZEL-SEAT COVER,BLACK | 2 | $29.99 | In stock | |
| 11 | 1024845-458 | WELD-SEAT FRAME,REAR,FLIP,BLK | 1 | $89.99 | In stock | |
| 12 | 2689264 | STRAP-SEAT | 2 | $8.99 | In stock | |
| 13 | 2693701 | ASM-COVER-SEAT,BTM,INDY RED,RS [AR][BR] | 1 | $139.99 | Out of stock Est. Oct 5, 2026 | |
| 13 | 2693711 | ASM-COVER-SEAT,BTM,TTM,RED ST [AC][BC] | 1 | $139.99 | In stock | |
| 13 | 2693202 | ASM-COVER-SEAT,BTM,TITANIUM [AJ][BJ][AV][BV] | 1 | $139.99 | In stock | |
| 15 | 5266311 | BUSHING-DOOR PIVOT | 4 | $3.99 | In stock | |
| 16 | 5267628 | BRKT-SEAT FRAME,HINGE,REAR | 2 | $12.99 | In stock | |
| 17 | 5467185 | PANEL-UNDERSEAT,REAR,FLIP | 1 | Price TBD | Out of stock | |
| 18 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 6 | Price TBD | Out of stock | |
| 19 | 7547789 | NUT-RIVNUT,M6X1.00 | 6 | $3.99 | In stock | |
| 20 | 7662356 | PIN-DOOR HINGE | 2 | $5.99 | In stock | |
| 21 | 7710466 | E-CLIP,M6, DIN 6799 | 2 | Price TBD | Out of stock | |
| 22 | 7517793 | SCR-M8X1.25X50 HX/FL-Y | 2 | Price TBD | Out of stock | |
| 23 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 24 | 5273997-458 | BRKT-LATCH,SEAT,MP,BLK | 2 | $34.99 | In stock | |
| 25 | 5466348 | LATCH-DOWEL | 2 | $4.99 | In stock | |
| 26 | 7520194 | SCR-CARRIAGE,M6X16 | 4 | $4.99 | In stock | |
| 27 | 7547475 | NUT-M6,HX/FL,NYLOC ZPB | 4 | Price TBD | Out of stock | |
| 28 | 7518936 | SCR-M6X1X16 TR/TX-M | 4 | Price TBD | Out of stock | |
| 29 | 2639643 | ASM-SEAT,BUN,BOTTOM [INCLS. BUN] | 1 | $44.99 | In stock | |
| 29 | 5815571 | BUN-SEAT,REAR,BOTTOM | 1 | $94.99 | In stock | |
| 30 | 2639642 | ASM-SEAT,BUN,BACK [INCLS. BUN] | 1 | $44.99 | In stock | |
| 30 | 5815572 | BUN-SEAT,REAR,BACK | 1 | Price TBD | Out of stock |
