Polaris•Schematic assembly

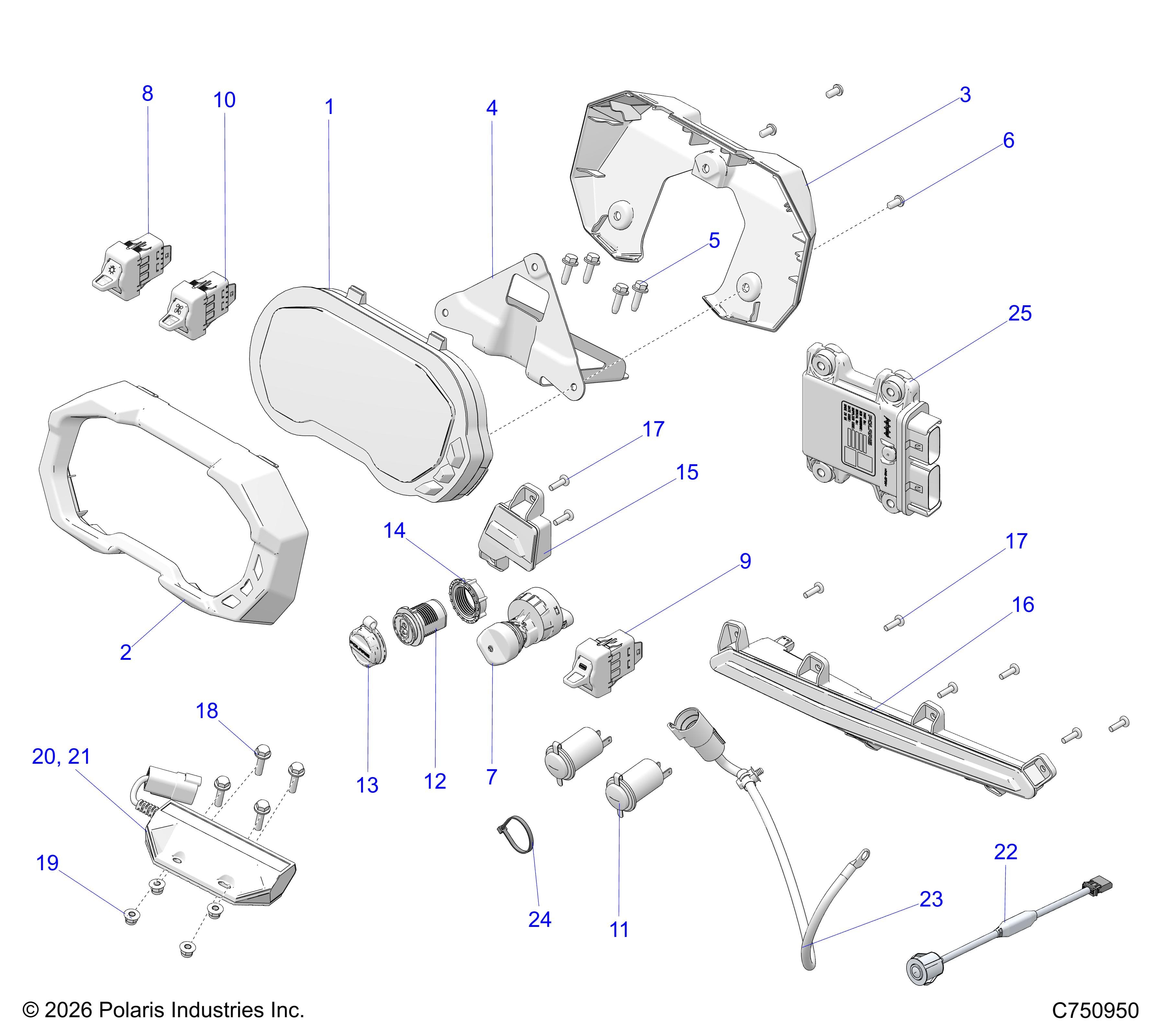

ELECTRICAL, DASH INSTRUMENTS, CONTROLS, & LIGHTING - Z26R4K2KAC/BC/AR/BR/AJ/BJ/AV/BV (C750950)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R4 ULTIMATE Assembly ID: 256348
Vehicle Compatibility
- 2026 Polaris RZR PRO R4 ULTIMATE
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3287009 | ASM-C4,500K | 1 | $529.99 | In stock | |
| 2 | 5459971-070 | PANEL-DASH,BEZEL,C4,BLK | 1 | $10.99 | In stock | |
| 3 | 5455957 | BEZEL-GAUGE,REAR | 1 | $11.99 | In stock | |
| 4 | 5266496 | BRKT-MOUNT,C4 GAUGE | 1 | $54.99 | In stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 6 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 3 | Price TBD | Out of stock | |
| 7 | 4016135 | SWITCH-KEY,4 POSITION,SEALED [TO 1.6.2026] | 1 | Price TBD | Out of stock | |
| 7 | 4083545 | SWITCH-KEY,4 POSITION,SEALED [FROM 1.6.2026] | 1 | $59.99 | In stock | |
| 8 | 4081621 | SWITCH-HEADLIGHT | 1 | $74.99 | Out of stock Est. Aug 19, 2026 | |
| 9 | 4018462 | SWITCH-DRIVER MODE | 1 | $99.99 | In stock | |
| 10 | 4080751 | SWITCH-3 POSITION 4WD | 1 | $79.99 | In stock | |
| 11 | 4012393 | RECEPTACLE-POD MNT,12 VOLT | 2 | $44.99 | In stock | |
| 12 | 2415295 | ASM-CHARGE PORT,BASE [INCL. 12-14] | 1 | Price TBD | Out of stock | |
| 12 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 13 | 5417215 | CAP-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 14 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 15 | 2417275 | ASM-LIGHT,DASH,LH,5700K | 1 | Price TBD | Out of stock | |
| 16 | 2417276 | ASM-LIGHT,DASH,RH,5700K | 1 | Price TBD | Out of stock | |
| 17 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 8 | Price TBD | Out of stock | |
| 18 | 7518533 | SCR-HXFL-M6X1.0X25 8.8 RIE | 4 | $1.49 | In stock | |
| 19 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 20 | 4080566 | ASM-DONGLE,TELEMATICS,500K [INCL. 21] | 1 | Price TBD | Out of stock | |
| 21 | 4080567 | HARDWARE-DONGLE,TELEMATICS | 1 | Price TBD | Out of stock | |
| 22 | 4082714 | CAMERA,C2B,DIG,NON-MIL,REAR | 1 | $149.99 | In stock | |
| 23 | 4083710 | CABLE-GND,AMP | 1 | $119.99 | In stock | |
| 24 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 5 | Price TBD | Out of stock | |
| 25 | 4082847 | SCM-PROGRAMMED,MP | 1 | $1,039.99 | Out of stock Est. Aug 4, 2026 |
