Schematic diagram
Polaris•Schematic assembly
*SERVICE & MAINTENANCE - RGR 1000 XP NSTR TRAIL BOSS CREW*
Product Description

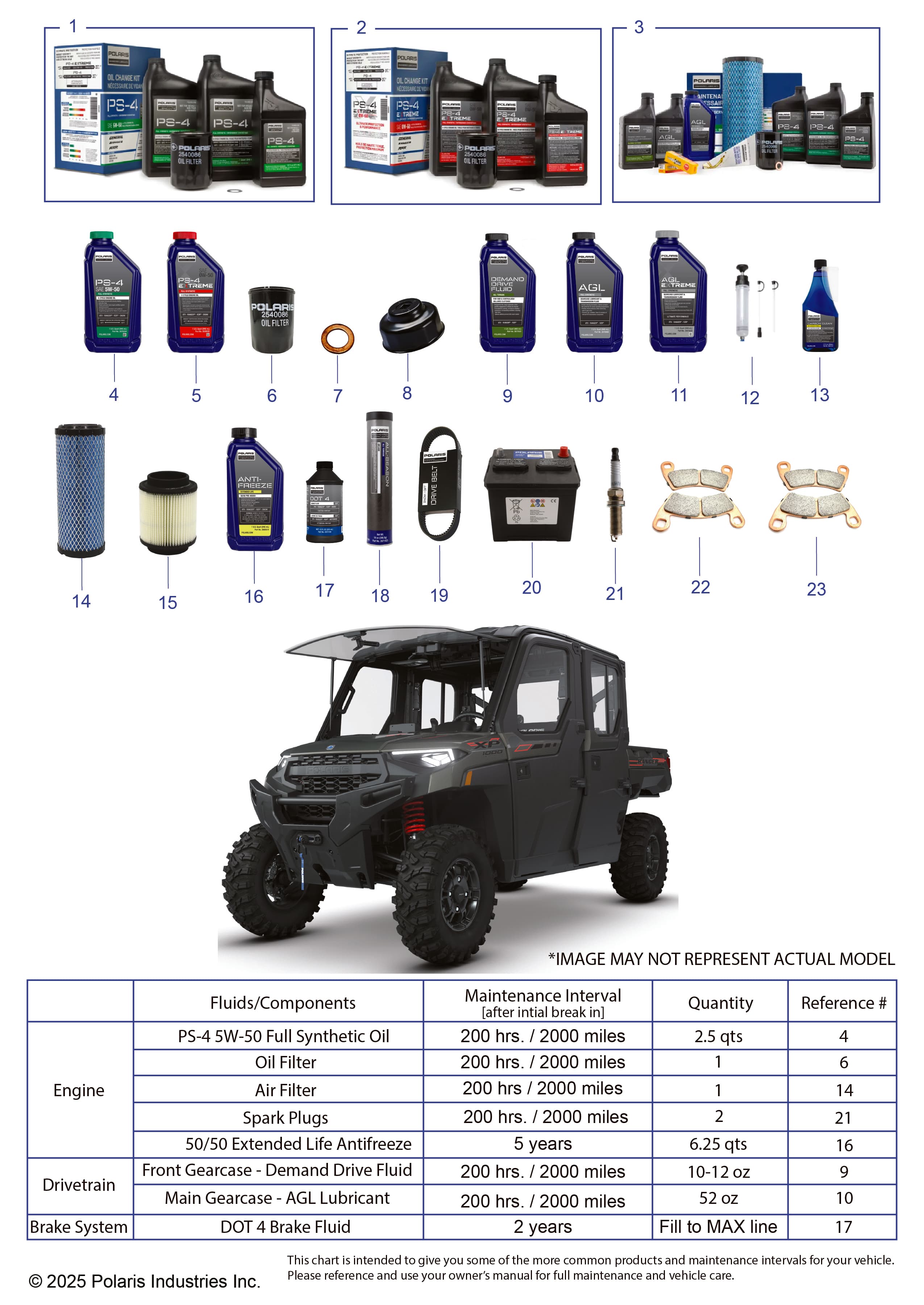

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 256977
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2879323 | PS-4 OIL CHANGE KIT, 2.5 QTS | 1 | $64.99 | In stock | |
| 2 | 2890057 | PS-4 EXTREME OIL CHANGE KIT, 2.5 QTS [EXTREME] | 1 | $75.99 | Out of stock | |
| 3 | 2830556 | K-MNT RGR XP1000 PS4 2.5Q | 1 | Price TBD | Out of stock | |
| 4 | 2876244 | PS-4 5W-50 SYNTHETIC, QT | 1 | $19.99 | In stock | |
| 4 | 2876245 | PS-4 5W-50 SYNTHETIC, GAL | 1 | $69.99 | Out of stock | |
| 5 | 2889395 | PS-4 0W-50 EXTREME SYNTHETIC, QT [EXTREME] | 1 | $24.99 | Out of stock | |
| 5 | 2889396 | PS-4 0W-50 EXTREME SYNTHETIC, GAL [EXTREME] | 1 | $89.99 | In stock | |
| 6 | 2540086 | FILTER-OIL (10 MICRON) | 1 | $14.99 | In stock | |
| 6 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | $19.99 | Out of stock Est. Jul 30, 2026 | |
| 7 | 7556937 | WASHER-COPPER SEALING | 1 | $3.99 | Out of stock Est. Sep 24, 2026 | |
| 8 | 2830550 | WRENCH,OIL FILTER | 1 | $11.99 | In stock | |
| 9 | 2877922 | DEMAND DRIVE PLUS, QT [FOR USE WITH FRONT GEARCASE] | 1 | $24.99 | In stock | |
| 10 | 2878068 | AGL GEARCASE & TRANS OIL, QT [FOR USE WITH MAIN GEARCASE] | 1 | $24.99 | In stock | |
| 10 | 2878069 | AGL GEARCASE OIL GAL (4) [FOR USE WITH MAIN GEARCASE] | 1 | $79.99 | Out of stock | |
| 11 | 2891028 | AGL EXTREME GEARCASE & TRANS OIL, QT [EXTREME] [FOR USE WITH MAIN GEARCASE] | 1 | $29.99 | In stock | |
| 12 | 2830553 | SYRINGE,FLUID CHANGE | 1 | $39.99 | In stock | |
| 13 | 2881413 | CARBON CLEAN FI, 12 OZ | 1 | $19.99 | NLA | |
| 14 | 7082265 | FILTER-AIR | 1 | $44.99 | In stock | |
| 14 | 7083113 | FILTER-HD,AIR INTAKE,220MM [HD OPTION] | 1 | $69.99 | In stock | |
| 15 | 1262218 | ASM-FILTER,AIR BOX [IN CAB FILTER] | 1 | $29.99 | In stock | |
| 16 | 2880514 | ANTI-FREEZE 50/50 PREMIX, QT | 1 | $13.99 | In stock | |
| 16 | 2880513 | ANTI-FREEZE 50/50 PREMIX, GAL | 1 | $32.99 | In stock | |
| 17 | 2872189 | DOT 4 BRAKE FLUID, 12 OZ | 1 | $14.99 | Out of stock | |
| 18 | 2871423 | ALL SEASON GREASE, 14 OZ | 1 | $14.99 | In stock | |
| 19 | 3211186 | BELT-DRIVE | 1 | $199.99 | In stock | |
| 19 | 3212358 | BELT-DRIVE,12.1CD,HDY [HD OPTION] | 1 | $259.99 | In stock | |
| 20 | 4014132 | BATTERY-575 CCA,FLOODED,FILLED | 1 | Price TBD | Out of stock | |
| 20 | 4081855 | BATTERY-HD,AGM,SEALED,R2 [HD OPTION] | 1 | $239.99 | In stock | |
| 21 | 3022662 | SPARK PLUG-10 MM | 2 | $11.99 | In stock | |
| 22 | 2209279 | K-ASM,PAD,BRAKE,DB,1.375,SPR [FRONT] [INCLUDES 2 PADS & SPRINGS] | 1 | $29.99 | In stock | |
| 22 | 2209280 | K-ASM,PAD,BRAKE,SB,1.50,SPR [REAR] [INCLUDES 2 PADS & SPRINGS] | 1 | $29.99 | In stock | |
| 23 | 2208933 | K-ASM,HD,PAD,BRK,DB,1.375 [HD OPTION] [FRONT] [INCLUDES 2 PADS] | 1 | $39.99 | In stock | |
| 23 | 2208936 | K-BRAKE,HD,PAD,DB1" [HD OPTION] [REAR] [INCLUDES 2 PADS] | 1 | $29.99 | In stock |
