Schematic diagram
Polaris•Schematic assembly

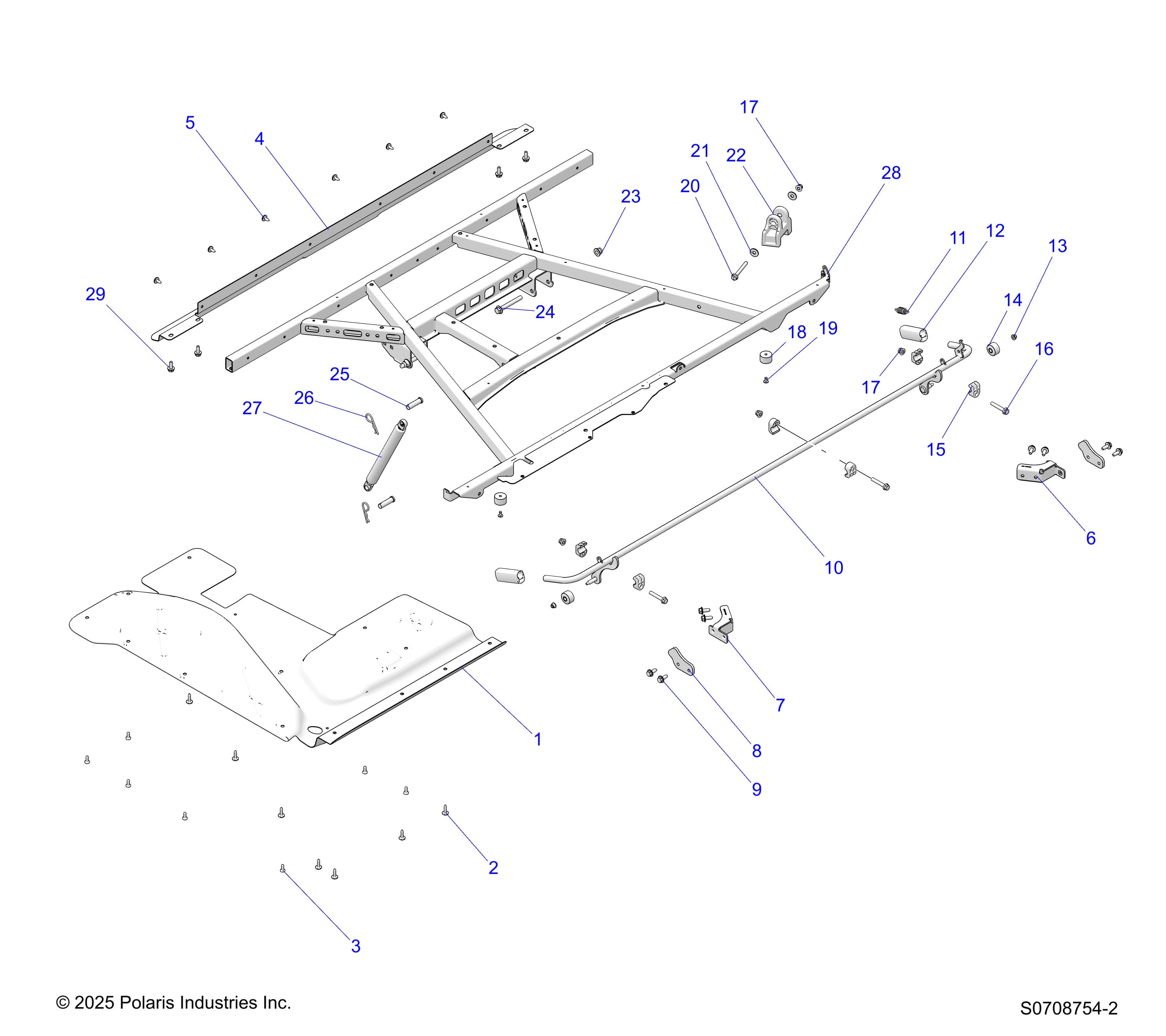

BODY, BOX, MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259241
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1026726-458 | WELD-BOX LATCH,BLK | 1 | Price TBD | Out of stock | |
| 2 | 1029756-329 | WELD-BRKT,SPACER,LH,ECOAT | 1 | $69.99 | In stock | |
| 3 | 1029757-329 | WELD-BRKT,SPACER,RH,ECOAT | 1 | $69.99 | In stock | |
| 4 | 7517793 | SCR-M8X1.25X50 HX/FL-Y | 3 | $6.99 | In stock | |
| 5 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 2 | $1.49 | In stock | |
| 6 | 1028367-329 | WELD-BOX SUPPORT,HVAC,BLK | 1 | $419.99 | In stock | |
| 7 | 5414343 | BUMPER-BOX | 2 | $6.99 | In stock | |
| 8 | 5434226 | BUSHING-BOX,LATCH | 6 | $4.99 | In stock | |
| 9 | 5450278 | HANDLE-BOX, LATCH | 2 | $39.99 | In stock | |
| 10 | 5276391-329 | BRKT-PLATE,CAM,HVAC,ECOAT | 2 | $49.99 | In stock | |
| 11 | 7046185 | SHOCK-BOX,DUMP,RGR,441MMEXT | 1 | $84.99 | In stock | |
| 12 | 7521333-80 | SCR-HXFL-M10X1.5X80 10.9 ZFB | 2 | $3.99 | In stock | |
| 13 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | $2.99 | In stock | |
| 14 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 2 | $2.99 | In stock | |
| 15 | 7661067 | CLIP-HITCHPIN .148X3 1/16 | 2 | $2.99 | In stock | |
| 16 | 7661878 | PIN-CLEVIS,1/2 X 1 3/4 | 1 | $2.99 | In stock | |
| 17 | 5459730 | BUMPER-LOCATING,RGR | 2 | $49.99 | Out of stock Est. Aug 3, 2026 | |
| 18 | 7556045 | WASHER-8.4X24.0X2.0 ZPB | 2 | $10.99 | In stock | |
| 19 | 5458307 | ROLLER-CAM,LATCH | 8 | $6.99 | In stock | |
| 20 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 1 | $2.99 | In stock | |
| 21 | 7521332-70 | SCR-HXFL-M8X1.25X70 10.9 ZFB | 1 | $4.99 | In stock | |
| 22 | 5271528 | SHIELD-BOX,CARGO | 2 | $179.99 | In stock | |
| 23 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | $1.49 | In stock | |
| 24 | 7041687 | SPRING-EXHAUST | 8 | $7.99 | In stock | |
| 25 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 7 | $4.99 | In stock | |
| 26 | 7520803 | SCR-TXPH-#14X5/8 HI/LO CLR | 1 | $3.99 | In stock | |
| 27 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | $4.99 | In stock | |
| 28 | 5273942-458 | BRKT,DRIP,REAR,BLK | 6 | $74.99 | In stock | |
| 29 | 7518936 | SCR-M6X1X16 TR/TX-M | 4 | $4.99 | In stock |
