Schematic diagram
Polaris•Schematic assembly

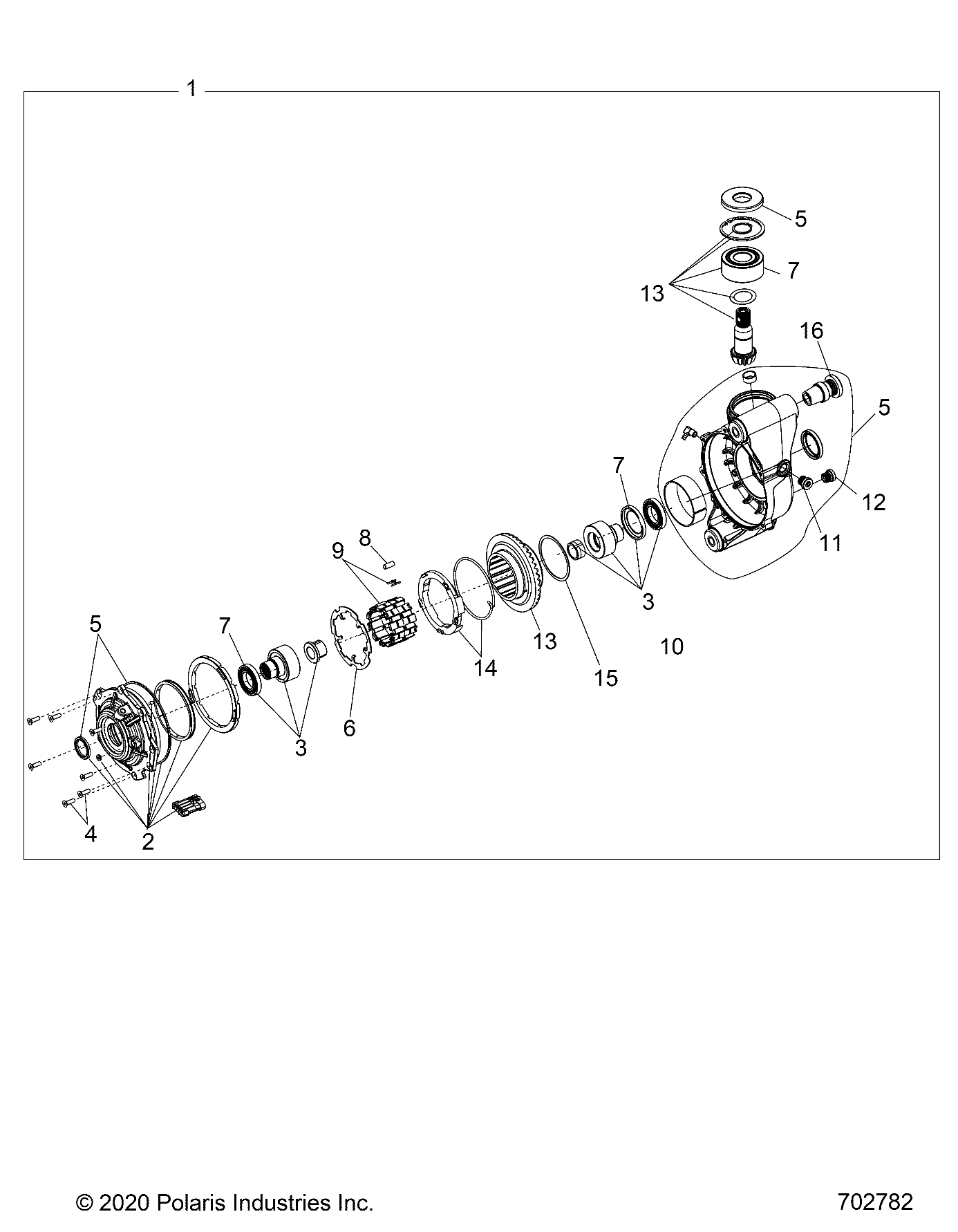

DRIVE TRAIN, FRONT GEARCASE INTERNALS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259458
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1336960 | ASM-GRCASE,FRT,ISO,3.23,ZN [INCLUDES ALL] | 1 | $2,099.99 | In stock | |
| 2 | 3236717 | ASM-COVER OUTPUT | 1 | $519.99 | In stock | |
| 3 | 3236718 | ASM-OUTPUT HUB,ZINC | 1 | $499.99 | In stock | |
| 4 | 3235483 | COVER-FASTNERS | 1 | $64.99 | In stock | |
| 5 | 3236719 | K-SEAL REPAIR | 1 | $124.99 | In stock | |
| 6 | 3236048 | PLATE-4WD ARMATURE | 1 | $139.99 | In stock | |
| 7 | 3236051 | BEARINGS | 1 | $194.99 | In stock | |
| 8 | 3235624 | K-CLUTCH ROLLS [INCLUDES FULL ROLLER SET OF 24] | 1 | $7.99 | In stock | |
| 9 | 3235917 | ASM-ROLL CAGE 3PC ZINC & CLIPS [INCLUDES ROLL CAGE & 24 H-CLIPS] | 1 | $224.99 | In stock | |
| 10 | 3239319 | ASM-GEARCASE | 1 | $2,099.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | $44.99 | In stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | $54.99 | In stock | |
| 13 | 3236764 | KIT-GEAR HOUSING & PINION GEAR ASSSY | 1 | $949.99 | In stock | |
| 14 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | $44.99 | In stock | |
| 15 | 3234437 | SPACER-RING GEAR | 1 | $24.99 | In stock | |
| 16 | 5417265 | KIT-ISOLATOR | 1 | $39.99 | In stock |
