Schematic diagram
Polaris•Schematic assembly
ENGINE, CRANKCASE & CRANKSHAFT
Product Description

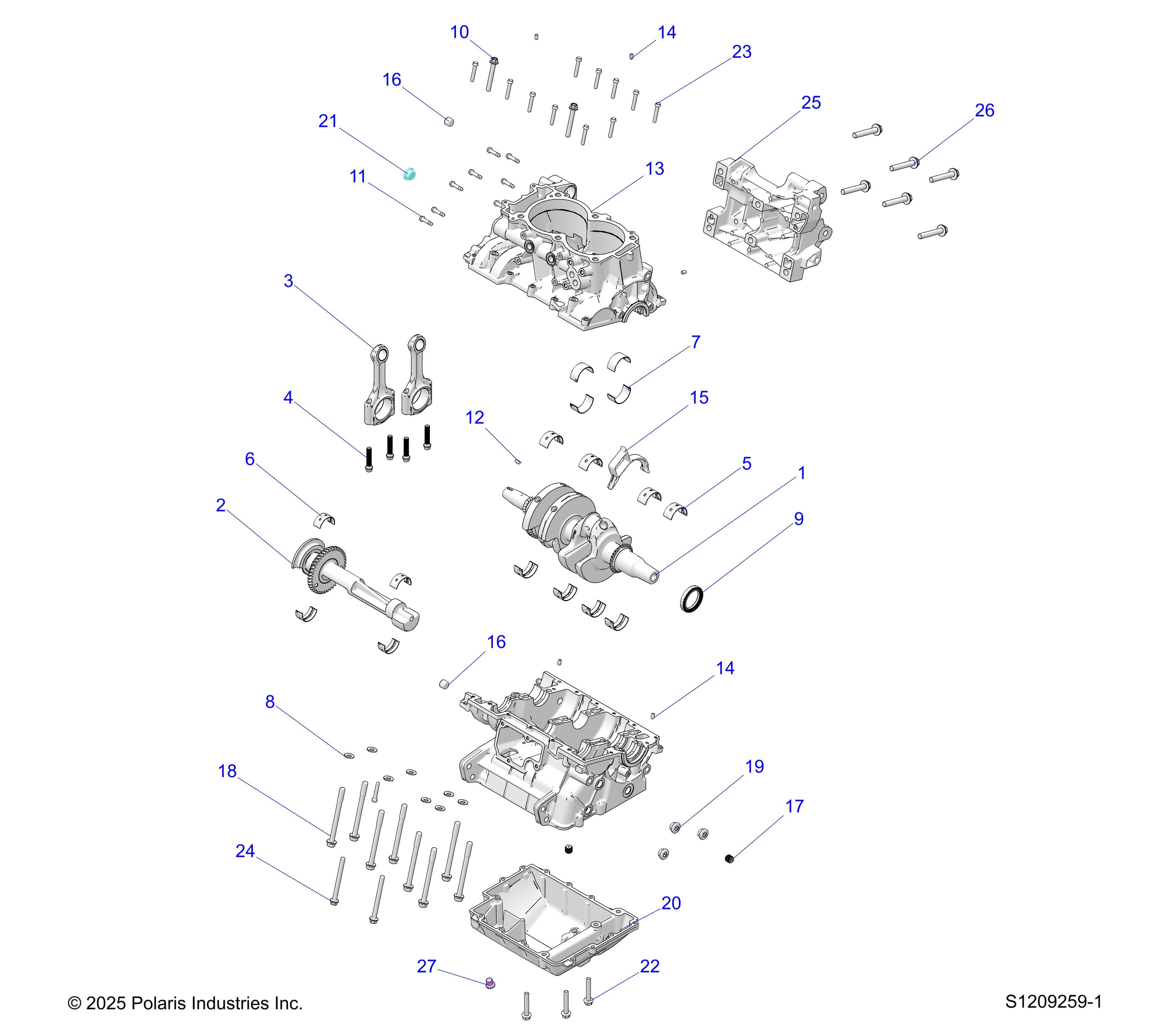

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259488
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 3610419 | SEAL-CRANKSHAFT 40MM [FROM 03/25/2026] | 1 | $39.99 | In stock | |
| 1 | 3023449 | ASM-CRANKSHAFT | 1 | $1,299.99 | In stock | |
| 2 | 1204835 | ASM-BALANCE SHAFT | 1 | $449.99 | In stock | |
| 3 | 3024568 | ASM-CONNECTING ROD [INCLUDES 4] | 2 | $104.99 | In stock | |
| 4 | 7520356 | BOLT-CONROD MJ9X1.0X44 | 4 | $29.99 | In stock | |
| 5 | 3514662-001 | BEARING-MAIN,G-90,41MM | 8 | $11.99 | In stock | |
| 5 | 3514662-002 | BEARING-MAIN,G-90,41MM,BLU | 8 | $11.99 | In stock | |
| 5 | 3514662-003 | BEARING-MAIN,G-90,41MM,GRN | 7 | $11.99 | In stock | |
| 5 | 3514662-004 | BEARING-MAIN,G-90,41MM,YLW | 7 | $11.99 | In stock | |
| 5 | 3514662-005 | BEARING-MAIN,G-90,41MM,RED | 7 | $11.99 | In stock | |
| 6 | 3514756 | BEARING-BAL SHAFT,38X41X17.5 | 4 | $11.99 | In stock | |
| 7 | 3514663-001 | BEARING, CONNECTING ROD, WHITE | 4 | $10.99 | In stock | |
| 7 | 3514663-002 | BEARING, CONNECTING ROD, BLUE | 4 | $10.99 | In stock | |
| 7 | 3514663-003 | BEARING, CONNECTING ROD, GREEN | 4 | $10.99 | In stock | |
| 7 | 3514663-004 | BEARING, CONNECTING ROD, YELLOW | 4 | $10.99 | In stock | |
| 8 | ------- | WASHER | 8 | Price TBD | Out of stock | |
| 9 | 3610284 | SEAL-CRANKSHAFT [TO 03/25/2026] | 1 | $39.99 | In stock | |
| 10 | 7519186 | SCR-HXFLG,M8X1.25X60 | 2 | $6.99 | In stock | |
| 11 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 13 | $4.99 | In stock | |
| 12 | 7721122 | KEY-WOODRUFF,4X5 | 1 | $8.99 | In stock | |
| 13 | 2207831 | K-CRANKCASE 3023497 [INCLUDES 13-19,21,23 & 24] | 1 | $1,349.99 | Out of stock Est. Aug 8, 2026 | |
| 13 | 3023497 | ASM-CRANKCASE | 4 | $1,349.99 | In stock | |
| 14 | 5143560 | PIN-DOWEL,M6X10 | 8 | $11.99 | Out of stock | |
| 15 | 5455583 | DIVERTER, OIL DRAIN | 1 | $16.99 | In stock | |
| 16 | 7521170 | PLUG-3/8 NPT,HX/SOC W/SEALANT | 2 | $0.99 | Out of stock | |
| 17 | 7518835 | PLUG-HEX SOCKET,1/4X18,SEALANT | 2 | $6.99 | In stock | |
| 18 | 7528378 | SCR-HXFL,M10X1.25X113MM 10.9 [INCLUDES 8] | 8 | $2.99 | In stock | |
| 19 | 7052642 | PLUG-HEX SCKT,W/O-RING,M16X1.5 | 3 | $8.99 | In stock | |
| 20 | 5143719 | COVER-SUMP,MACH | 1 | $134.99 | In stock | |
| 21 | 7052643 | PLUG-HEX SCKT,W/O-RING,M20X1.5 | 1 | $9.99 | In stock | |
| 22 | 7517793 | SCR-M8X1.25X50 HX/FL-Y | 3 | $6.99 | In stock | |
| 23 | 7518578 | SCR-HXFL-M6X1.0X35 8.8 ZY3 | 12 | $4.99 | In stock | |
| 24 | 7519154 | SCR-HXFLG,M8X1.25X90 | 2 | $8.99 | In stock | |
| 25 | 5143718 | BRKT-TRANSJOINT,MACH | 1 | $179.99 | In stock | |
| 26 | 7520467 | BOLT-M10X1.5X60MM8.8HEXDRILOCK | 6 | $5.99 | In stock | |
| 27 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | $18.99 | In stock |
