Schematic diagram
Polaris•Schematic assembly

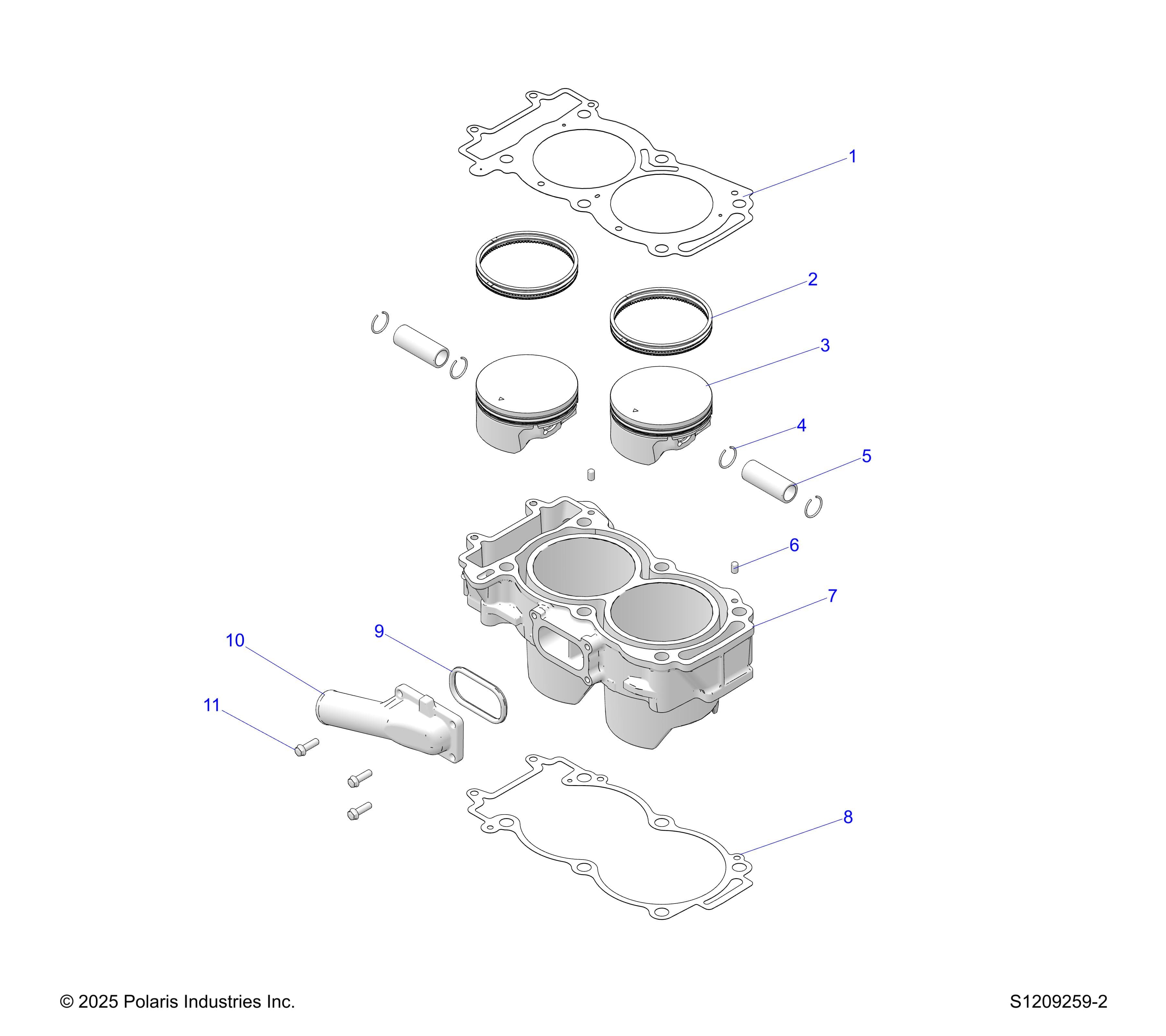

ENGINE, CYLINDER & PISTON
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259489
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5814793 | GASKET-CYLINDER,HEAD | 1 | $74.99 | In stock | |
| 2 | 2205245 | KIT-PISTON RINGS [INCLUDES 2 & 5] | 1 | Price TBD | Out of stock | |
| 3 | 2208319 | K-PISTON,3023455 | 1 | $189.99 | In stock | |
| 4 | 3022413 | RING-RTG,ROUND,20.0X1.6 | 4 | $4.99 | In stock | |
| 5 | 3022358 | PIN-PISTON | 2 | $29.99 | In stock | |
| 6 | 5132835 | PIN-DOWEL,M6X10 | 2 | $2.99 | In stock | |
| 7 | 3023800 | ASM-CYLINDER,875 [INCLUDES 6] | 1 | $599.99 | Out of stock Est. Sep 3, 2026 | |
| 8 | 5272970 | GASKET-BASE,2 CYL | 1 | $44.99 | In stock | |
| 9 | 5813736 | GASKET-WATER,INLET | 1 | $29.99 | In stock | |
| 10 | 5632557 | COVER-WATER INLET,CAST | 1 | $18.99 | In stock | |
| 11 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 3 | $3.99 | In stock |
