Schematic diagram

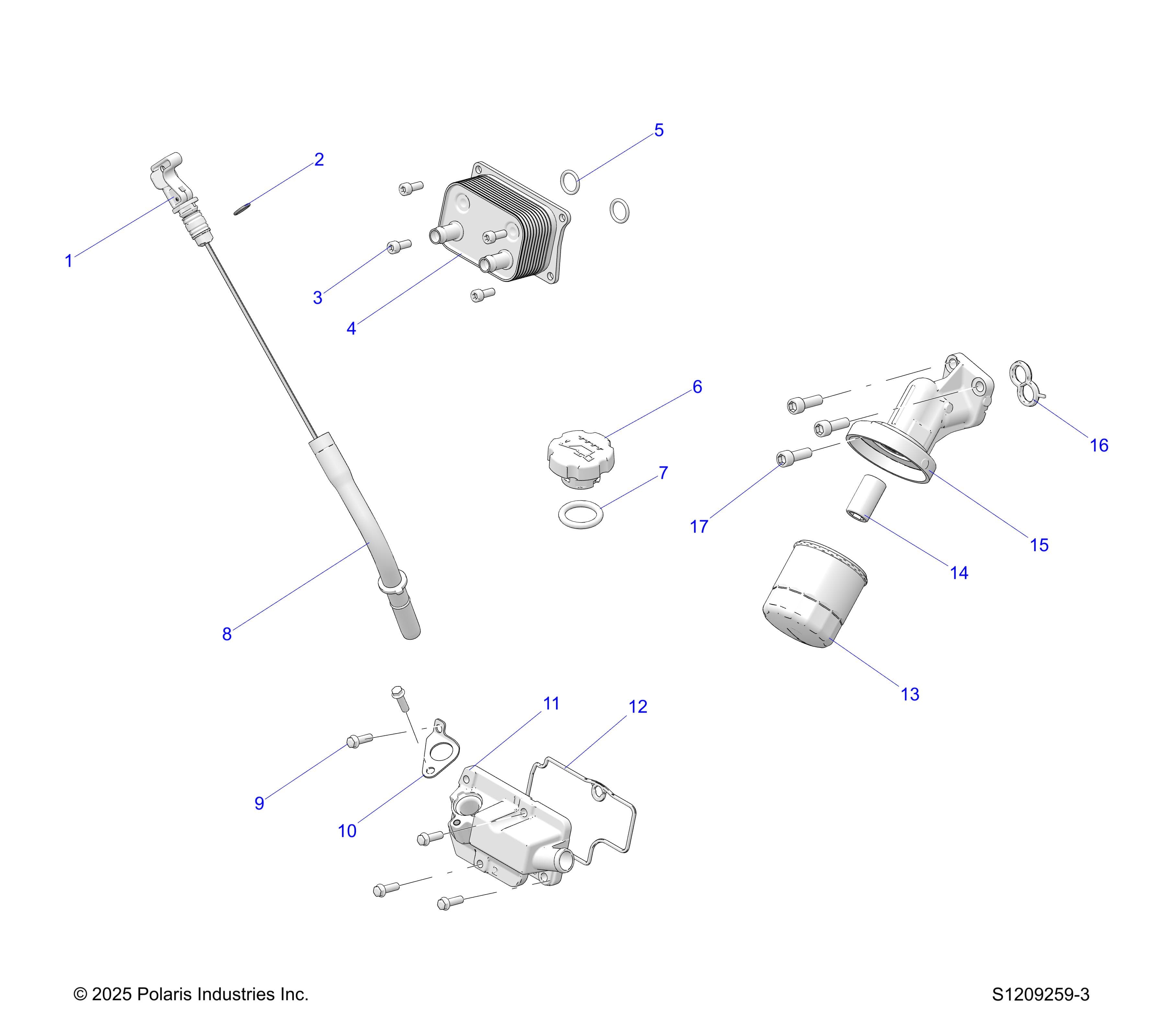

Polaris•Schematic assembly
ENGINE, DIPSTICK & OIL FILTER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259490
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023488 | ASM-DIPSTICK | 1 | $44.99 | In stock | |
| 2 | 5414047 | O-RING, 12MMX2MM | 1 | $4.49 | In stock | |
| 3 | 7519303 | SCREW-SH-M6X1.0X16 8.8 ZPY D204 | 4 | $4.99 | In stock | |
| 4 | 1240821 | COOLER-OIL TO WATER,5 | 1 | $119.99 | In stock | |
| 5 | 5413837 | O-RING,.612X.818X.103 | 2 | $5.99 | In stock | |
| 6 | 1205012 | ASM-OIL FILL CAP | 1 | $44.99 | In stock | |
| 7 | 5414362 | O-RING-FILL CAP | 1 | $4.49 | In stock | |
| 8 | 1204547 | ASM-OIL FILL TUBE [INCLUDES O-RING] | 1 | $54.99 | In stock | |
| 9 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 5 | $3.99 | In stock | |
| 10 | 5255453 | BRACKET, TUBE, OIL FILL, LOWER | 1 | $10.99 | In stock | |
| 11 | 5145419 | COVER-BREATHER,MACH | 1 | $49.99 | In stock | |
| 12 | 5813759 | SEAL-COVER,BREATHER | 1 | $34.99 | In stock | |
| 13 | 2540086 | FILTER-OIL (10 MICRON) | 1 | $14.99 | In stock | |
| 13 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | $19.99 | Out of stock Est. Jul 30, 2026 | |
| 14 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | $44.99 | In stock | |
| 15 | 5142156 | ADAPTER-OIL FILTER, MACH | 1 | $54.99 | In stock | |
| 16 | 3610348 | SEAL-FILTER ADAPTER-3HOLE | 1 | $11.99 | In stock | |
| 17 | 7518142 | SCR-SH-M8X1.25X25 8.8 ZPC NYL | 3 | $12.99 | In stock |
