ENGINE, WATERPUMP & BYPASS
Product Description

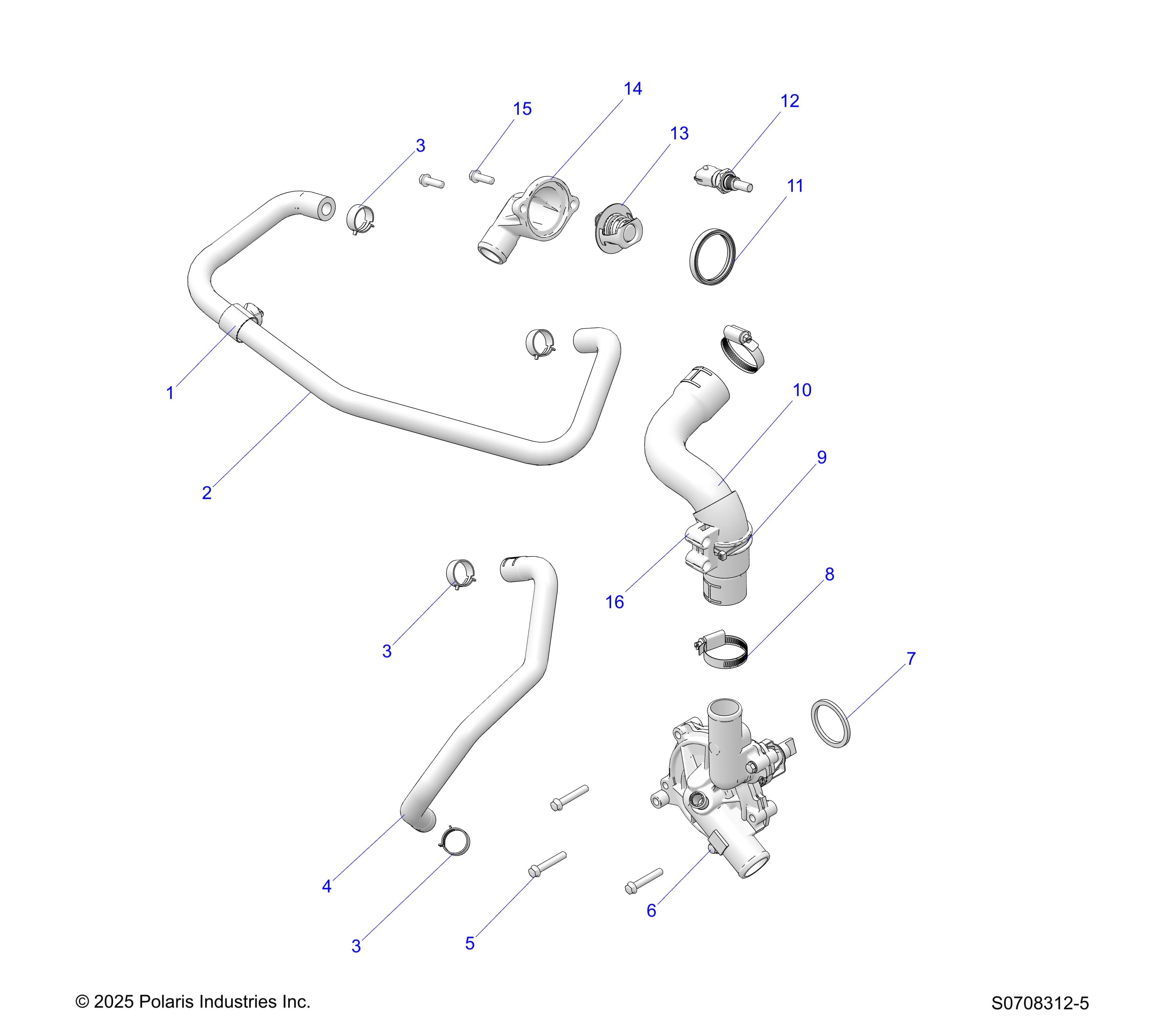

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259498
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5415088 | CLIP-HOSE | 1 | $5.99 | In stock | |
| 2 | 5416630 | HOSE-BYPASS LINE | 1 | $59.99 | In stock | |
| 3 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | $9.99 | In stock | |
| 4 | 5416752 | HOSE-OIL COOLER OUT | 1 | $39.99 | In stock | |
| 5 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 3 | $5.99 | In stock | |
| 6 | 1205015 | ASM-WATERPUMP | 1 | $244.99 | In stock | |
| 7 | 5814207 | FILTER-WP [SEE WATERPUMP ASSEMBLY FOR O-RING] | 1 | $2.99 | In stock | |
| 8 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 9 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | $2.99 | In stock | |
| 10 | 5416305 | HOSE-WATERPUMP,OUT | 1 | $79.99 | In stock | |
| 11 | 5413948 | SEAL-THERMOSTAT | 1 | $9.99 | In stock | |
| 12 | 4010644 | SENSOR-THERMISTER | 1 | $94.99 | In stock | |
| 13 | 7052496 | THERMOSTAT-44M FLANGE,180F | 1 | $54.99 | In stock | |
| 14 | 5632606 | COVER-THERMOSTAT | 1 | $54.99 | In stock | |
| 15 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | $3.99 | In stock | |
| 16 | 5417378 | SUPPORT-STATOR WIRE | 1 | $134.99 | In stock |
