Schematic diagram
Polaris•Schematic assembly
FUEL SYSTEM
Product Description

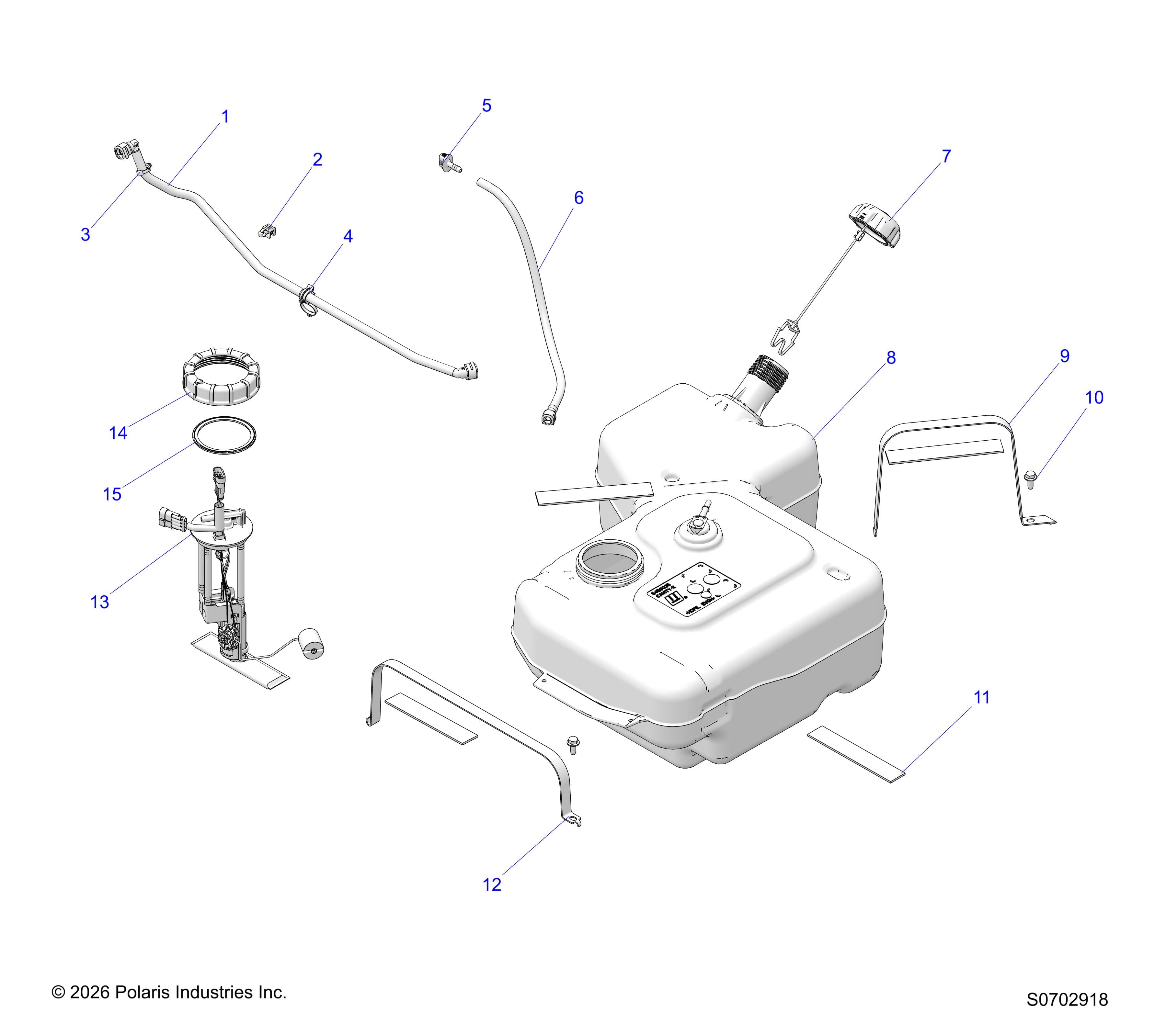

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259499
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2522096 | ASM-FUEL LINE | 1 | $84.99 | In stock | |
| 2 | 7081876 | CLIP, EDGE, SIDE, W/STRAP | 1 | $9.99 | In stock | |
| 3 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | $5.99 | In stock | |
| 4 | 7082407 | CLIP-OMEGA,CABLE/10-14MM DIA | 1 | $4.99 | In stock | |
| 5 | 5453465 | FITTING-VENT LINE | 1 | $6.99 | In stock | |
| 6 | 2522003 | ASM-LINE,TANK TO VENT | 1 | $59.99 | In stock | |
| 7 | 2521937 | CAP-GAS TANK,TETHER | 1 | $39.99 | In stock | |
| 8 | 2522715 | ASM-FUEL TANK | 1 | $949.99 | In stock | |
| 9 | 5268130 | BRKT-TANK,STRAP,OUTSIDE,GALV | 1 | $17.99 | In stock | |
| 10 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 11 | 5810290 | PAD-BATTERY | 4 | $8.99 | In stock | |
| 12 | 5268129 | BRKT-TANK,STRAP,INSIDE,GALV | 1 | $17.99 | In stock | |
| 13 | 2211908 | K-FUEL PUMP,RANGER [INCLUDES PUMP, 14 & 15] | 1 | $379.99 | In stock | |
| 14 | 5437138 | NUT-MASON JAR | 1 | $44.99 | In stock | |
| 15 | 5413451 | GASKET-PFA,RIBBED | 1 | $14.99 | In stock |
