Schematic diagram
Polaris•Schematic assembly
ENGINE, COOLING SYSTEM
Product Description

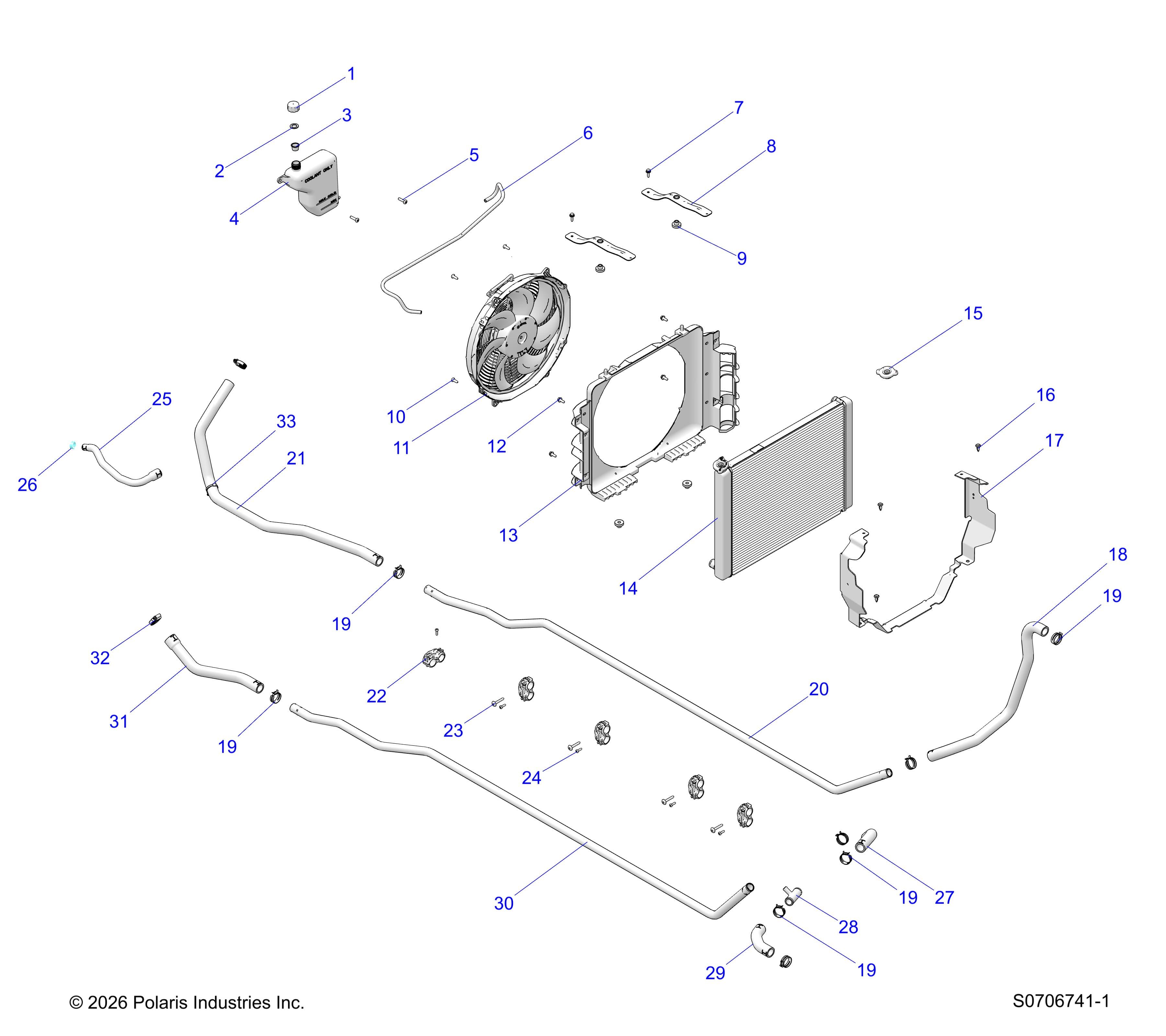

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 260965
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED | 1 | $6.99 | In stock | |
| 2 | 5810279 | GASKET-OVERFLOW CAP | 1 | $2.99 | In stock | |
| 3 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | $6.99 | In stock | |
| 4 | 5439202 | TANK-SURGE | 1 | $119.99 | In stock | |
| 5 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 2 | $5.99 | In stock | |
| 6 | 8450003-95 | FUEL LINE-95 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 7 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 8 | 5263654-329 | BRKT-RADIATOR MOUNT,BLK | 2 | $14.99 | In stock | |
| 9 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | $7.99 | In stock | |
| 10 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 11 | 2416014 | ASM-FAN-500W | 1 | $519.99 | In stock | |
| 12 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | $3.99 | In stock | |
| 13 | 5458272 | SHROUD-FAN,HVAC | 1 | $144.99 | In stock | |
| 14 | 1241164 | ASM-RADIATOR,CORE,HVAC [INCLUDES 15] | 1 | $649.99 | In stock | |
| 15 | 1240694 | CAP | 1 | $49.99 | In stock | |
| 16 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | $1.49 | In stock | |
| 17 | 5459846-070 | SHROUD-RADIATOR,FRT,HVAC,BLK | 1 | $49.99 | In stock | |
| 18 | 5416209 | HOSE-UPPER,RAD | 1 | $94.99 | In stock | |
| 19 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 8 | $12.99 | In stock | |
| 20 | 5340378 | TUBE-COOLANT,1",UPPER | 1 | $79.99 | In stock | |
| 21 | 5416140 | HOSE-ENG,OUT | 1 | $59.99 | In stock | |
| 22 | 5453767 | CLIP-COOLANT ROUTING | 5 | $6.99 | In stock | |
| 23 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 4 | $4.99 | In stock | |
| 24 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 5 | $1.49 | In stock | |
| 25 | 5416357 | HOSE-COOLANT,3WAY TO ENG | 1 | $39.99 | In stock | |
| 26 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | $9.99 | In stock | |
| 27 | 5416211 | HOSE-COOLANT,3WAY-HEATER | 1 | $39.99 | In stock | |
| 28 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | $6.99 | In stock | |
| 29 | 5416210 | HOSE-COOLANT,3WAY-ENG | 1 | $39.99 | In stock | |
| 30 | 5340377 | TUBE-COOLANT,1" | 1 | $79.99 | In stock | |
| 31 | 5416139 | HOSE-ENG,IN | 1 | $18.99 | In stock | |
| 32 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 33 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | $5.99 | In stock |
